KSL

Machining of metal

Our company offers metal machining services using modern equipment, at competitive prices and on time!

Calculation request

To get a calculation of your task or order a service, contact us by phone or e-mail.

Or just fill out the form and our managers will contact you as soon as possible.

    Name*
    Phone number*
    Technical task

    The main types of KSL mechanical work

    Turning works

    The maximum dimensions of the workpiece on a CNC lathe - Ø450 mm, length 500 mm

    Milling work

    The maximum dimensions of the workpiece on the CNC milling machine are 762×406×508 mm

    Metal polishing

    The dimensions of the workpiece to be polished depends on the size of the part and the complexity of the work.

    Tape cutting of metal

    The dimensions of the workpiece for cutting depends on the diameter of the pipe

    Drilling work

    The maximum hole diameter on the drilling machine we use is 60mm

    Assembly work

    Assembly work depends on the complexity of the workpiece

    What types of metals can we process?

    Сталь

    Carbon steel

    Depending on the metal

    Нержа

    Stainless steel

    Depending on the metal

    Алюминий

    Aluminum

    Depending on the metal

    Латуль

    Brass

    Depending on the metal

    другие

    Other metals

    Depending on the metal

    KSL production

    Production
    2500 m2

    Design
    office

    New
    equipment

    Fast production
    times

    Full cycle
    production

    Advanced
    technologies

    The main advantages of KSL machining

    Why metal machining services should be ordered from us?

    Full cycle

    Your product is manufactured by one contractor at one factory

    We meet deadlines

    Production of an average batch takes from 3 working days

    Market prices for services

    We constantly monitor the metalworking market and control our pricing system

    We draw product layouts

    We develop a part model from scratch for free according to your terms of reference

    High quality

    The quality produced by KSL complies with all international standards

    Fast delivery of orders

    We organize the delivery of products to your warehouse, you do not need to worry about anything

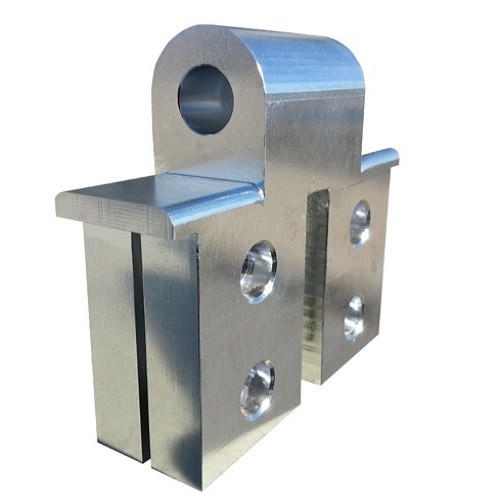

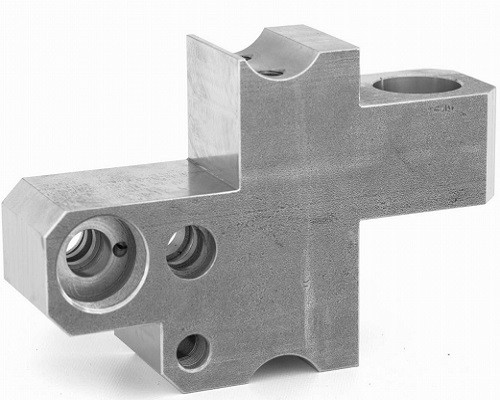

    Examples of products made by metal machining

    Useful information on the machining of metals

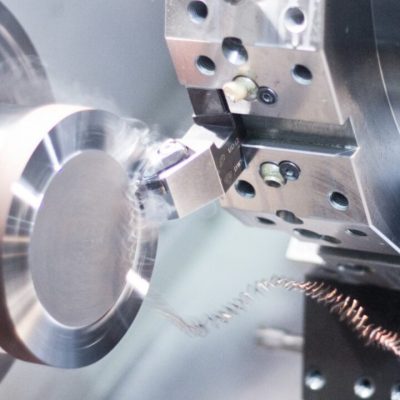

    slide2-2

    Machining of metal is the process of processing metal products and other materials using mechanical action using a cutter, drill, milling cutter and other cutting tool. The processing process itself is carried out on metal-cutting machines, in the prescribed manner according to the technological process.

    Turning is a type of mechanical processing of a metal part by cutting the outer and inner surfaces due to the rotation of cylindrical and conical tips. This process includes: facing, parting, chamfering, filleting, grooving, cutting internal and external threads on lathes. The most common operation performed on lathes is the processing of the outer smooth and stepped cylindrical surfaces of the shafts. Depending on the size of the workpiece, it can be mounted on the machine in the centers, chuck or in a combined way. As a cutting tool for processing external and internal cylindrical and conical surfaces, pass-through or scoring cutters are used.

    Milling is a type of machining of a metal part in which the cutting element is a specialized cutter. A milling cutter is a cutting tool made in the form of a gear with many blades, which is clamped in a milling machine and rotated at high speed, removes layers of the workpiece surface in the place you need. As already mentioned, depending on the cutter used, there are several types of milling, namely:
    1) Face milling, the essence of which is to obtain a certain shape of parts using a face mill. This is necessary in most cases for cutting undercuts, grooves, windows and other elements in products. With its help, reverse milling of the end face is also performed from the inside of a different product plan. End, which are needed for the formation of ledges in planes of vertical or horizontal shape.
    2) Cylindrical, characterized by the production of products in the planes of the corresponding cutter in the reverse position.
    3) Toothed.
    4) Shaped, which consists in creating shaped (spheres, ellipses, etc.) irregularly shaped parts. This is milling with the help of special cutters, resulting in shaped products.

    Band saw metal cutting is a type of mechanical processing of a metal part in which, using a cutting element and a specialized machine, a metal workpiece is cut according to a specified size. The workpiece is affected by a band saw blade stretched over two pulleys in the machine body, which has a high vibration speed. On such equipment, it is possible to cut a wide variety of materials: long products, pipe metal, light alloys, stainless and alloy steels, non-ferrous, ferrous metals, etc. In products manufactured on metal band saws, there is a need for construction, procurement , metallurgy, instrument making and many other areas.

    Drilling of metal is a type of mechanical processing of a metal part in which holes of various diameters, depths and sections are obtained. Drilling work is usually carried out at one of the final stages of manufacturing a part after turning, milling and other types of mechanical metalworking. Drilling works are used to obtain holes in metal blanks for the following: threading, countersinking (increasing the diameter of the hole), reaming or boring. When drilling metal, reliable fastening of the part, accurate marking, correct sharpening of the cutting tool, feed and rotation speed are of great importance, affecting the final result of the workpiece. The most popular type of drilling work. Which are found are:
    1) Drilling cylindrical holes;
    2) Drilling multifaceted and oval holes;
    3) Reaming cylindrical holes (diameter increase);
    4) countersinking, countersinking;
    5) Threading in various materials;

    Metal polishing is a type of mechanical processing of a metal part, which consists in removing the thinnest possible layer of material from the surface of the part. There are a large number of technological methods with which you can polish the product to a shine, consider the most popular:
    1) Mechanical or abrasive polishing of products;
    2) Chemical polishing with the help of special substances or pastes;
    3) Electrochemical polishing;
    4) Electrolyte-plasma polishing.

    Frequently asked questions from KSL clients

    In order for us to make an accurate calculation of the cost of metal machining and the timing of the service, we need to receive from you complete information about the product, a detailed specification or a drawing in one of the formats: PDF, CDR, DWG or DXF. Prices for KSL machining services are determined by such basic criteria as:

    1. Volume of the order;

    2. Type of metal and its thickness;

    3. Terms of order fulfillment;

    4. Complexity of work, depending on the workpiece;

    5. Tolling or own raw materials;

    To find out how much machining costs and to order it, you can send all available drawings and drawings of products to our e-mail metalworking@ksl.ua, attach a file in the order form at the top of the page, or call us.

    The design department of KSL, depending on the complexity of the product, can absolutely free of charge develop for you a drawing of the product you are interested in, if the potential planned purchase volume is assessed by the direction manager as promising, in accordance with the requirements of the companies. To create a professional drawing by our design department, you need to provide the following information:

    1.PDF drawing or an example of a drawing / photo / drawing indicating the exact external and internal dimensions of the product you are interested in;

    2. What shape, diameter and thickness of the pipe will you use to get the finished part.

    3.Painting will or not. If so, you need to specify the RAL color and paint texture;

    4. Desired term for obtaining a sample and ordering a finished batch;

    5. There will be tolling or own raw materials of the company;

    Due to the fact that the production process of KSL is tailored for medium and large-scale production, and we make individual orders quite rarely, we are ready to consider options for orders from 30,000 UAH. But in any case, please contact our managers, they will advise you as soon as possible.

    The production complex of the KSL company is located in the city of Kyiv on Semyi Sosninyh street 9. Laser cutting of metal Kyiv is very popular, many Kyiv metalworking shops produce it, but we ask you to pay your attention to the timing of orders and the quality of goods at an affordable price offered by KSL.

    The KSL company implements orders throughout Ukraine and abroad. We are constantly approached by companies from all regions of Ukraine: Kharkiv, Dnipro, Odessa, Vinnitsa, Lviv, Poltava, Zaporozhye, Lutsk and many other regions of Ukraine.

    KSL has its own export department, which, in the shortest possible time, will be able to make a miscalculation of laser metal cutting for you and advise on all your questions. KSL laser cutting services are ordered from such countries as: Germany, Switzerland, Austria, France, Portugal, Denmark, Norway, Sweden, Belarus, Romania, Poland, England, Ireland, as well as from other countries. We work under all possible conditions for international shipments according to Incoterms 2020, depending on the needs of the client.
